3Dプリンタ Flashforge Inventor 2

研究用機器の治具や生体モデル出力に便利なので、時流に乗って入手した。 スライス用の専用のソフトの性能が比較的良く、込み入ったモデルでなければ比較的容易にきれいな出力を得ることが出来る。 デュアルヘッドなので、複数の色での出力が可能である。

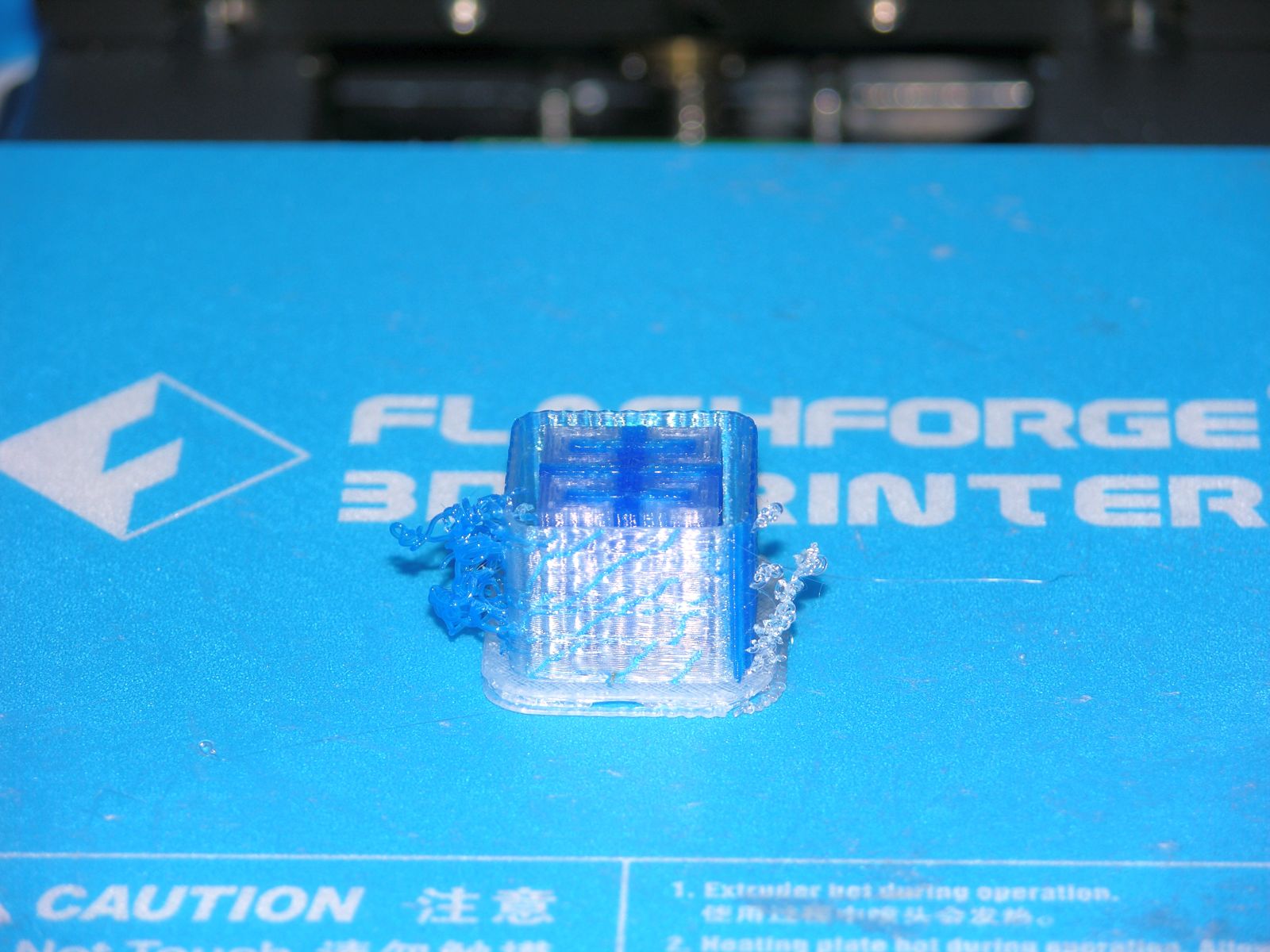

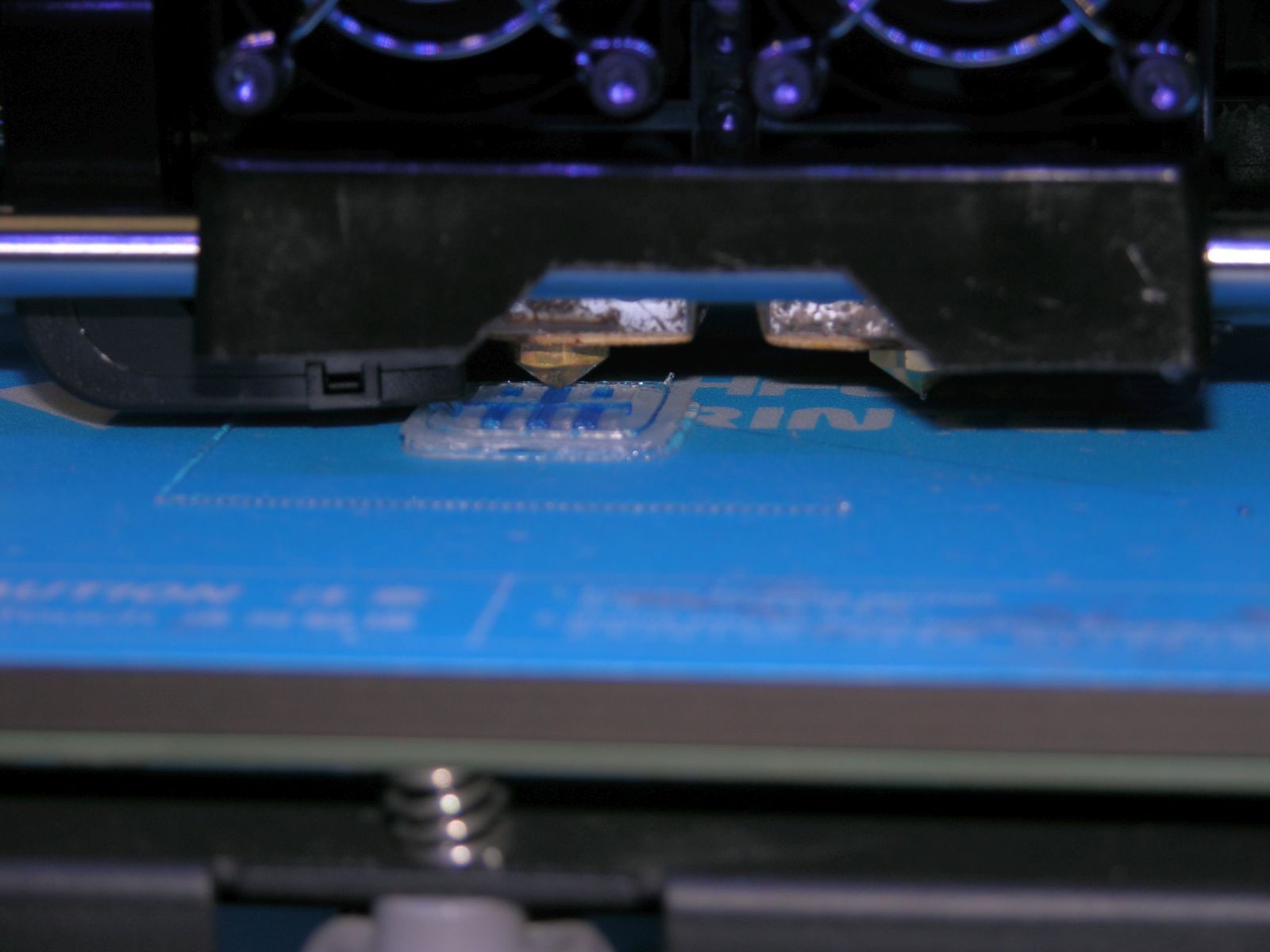

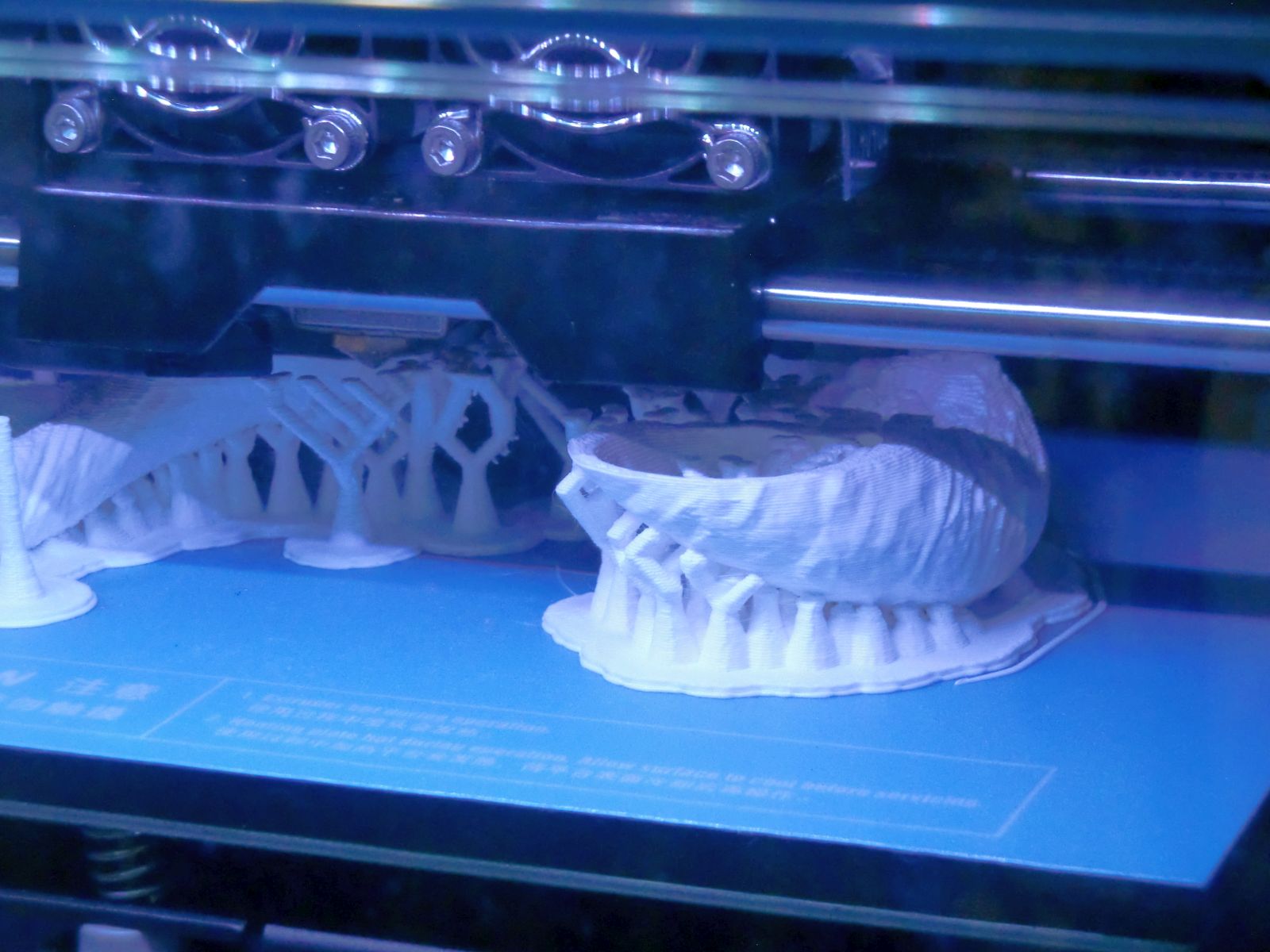

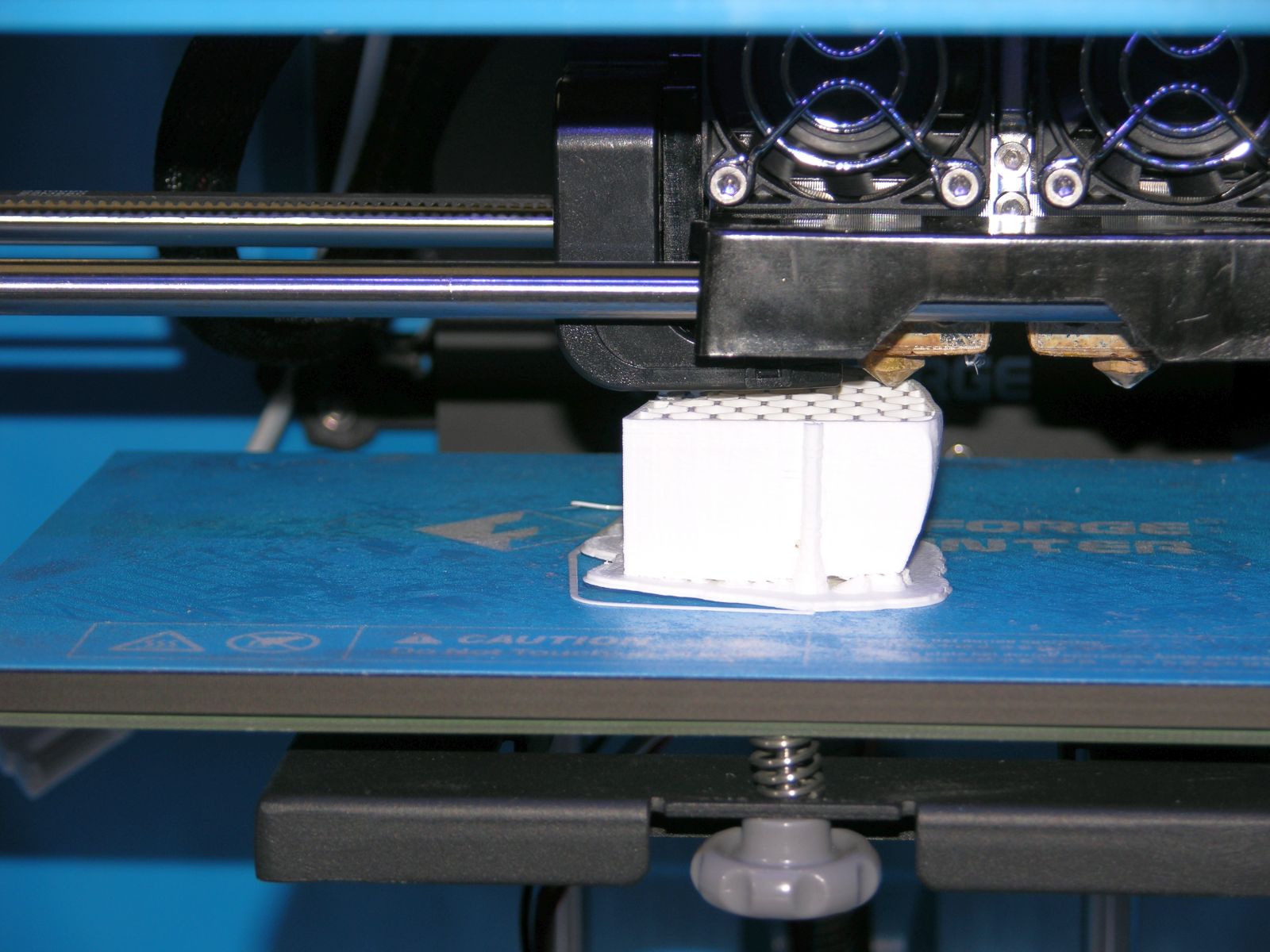

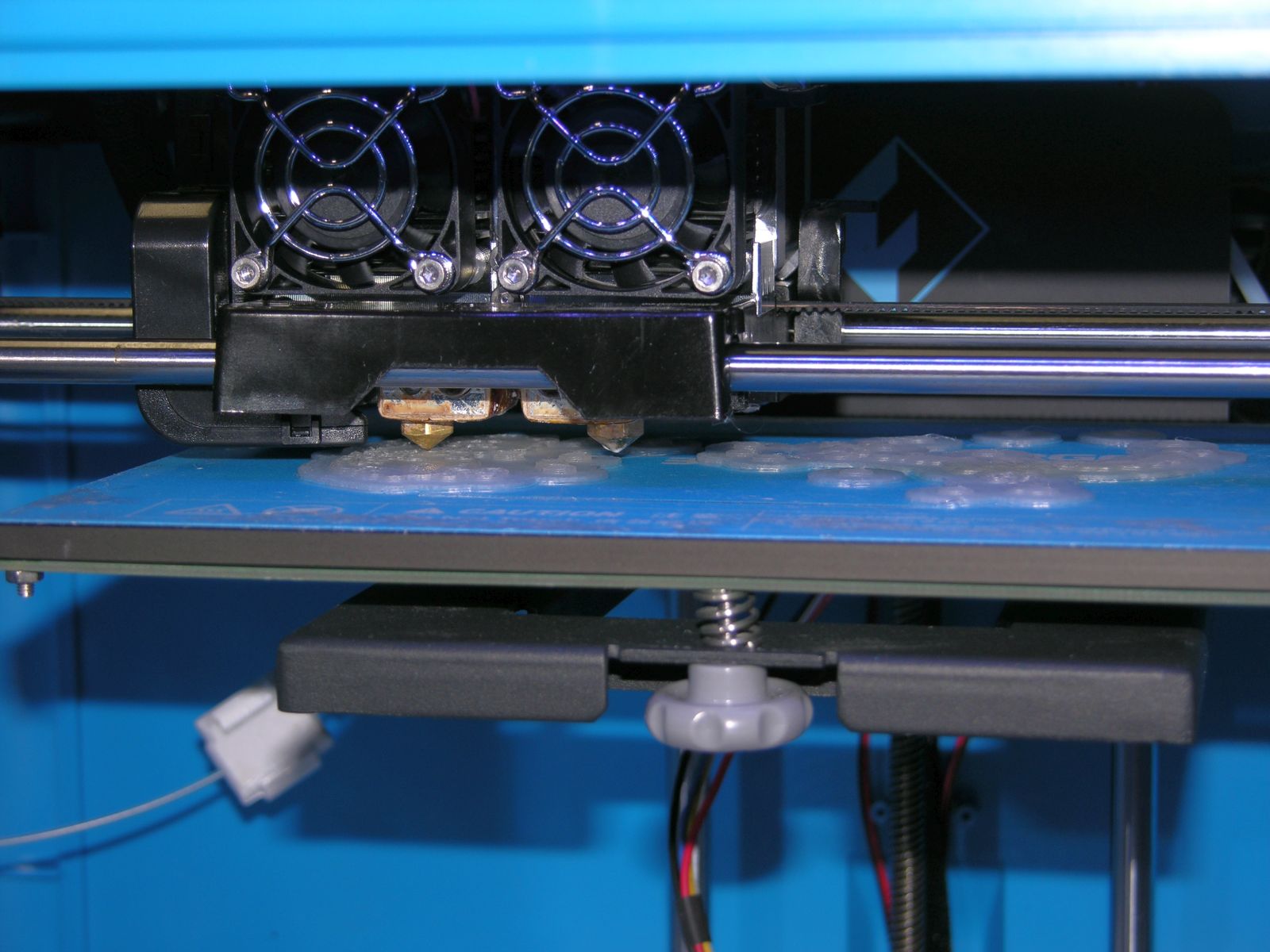

出力サンプル

ヘッドの交換

出力量に応じて少しずつヘッドがへたってくるので、本体からばらして交換する必要がある。始めに冷却用ダクトを外してからヘッド全体を本体から外し、 トップからケーブルを外し、次に冷却用ファンを外してヘッドに辿り着く。茶色のカプトンテープに包まれたヘッドをスパナ等でゆっくり回転させて外し、さらに真鍮製のヘッドを回して外し、新品と交換する。 一度慣れると手順は理解出来るが、比較的込みっている。

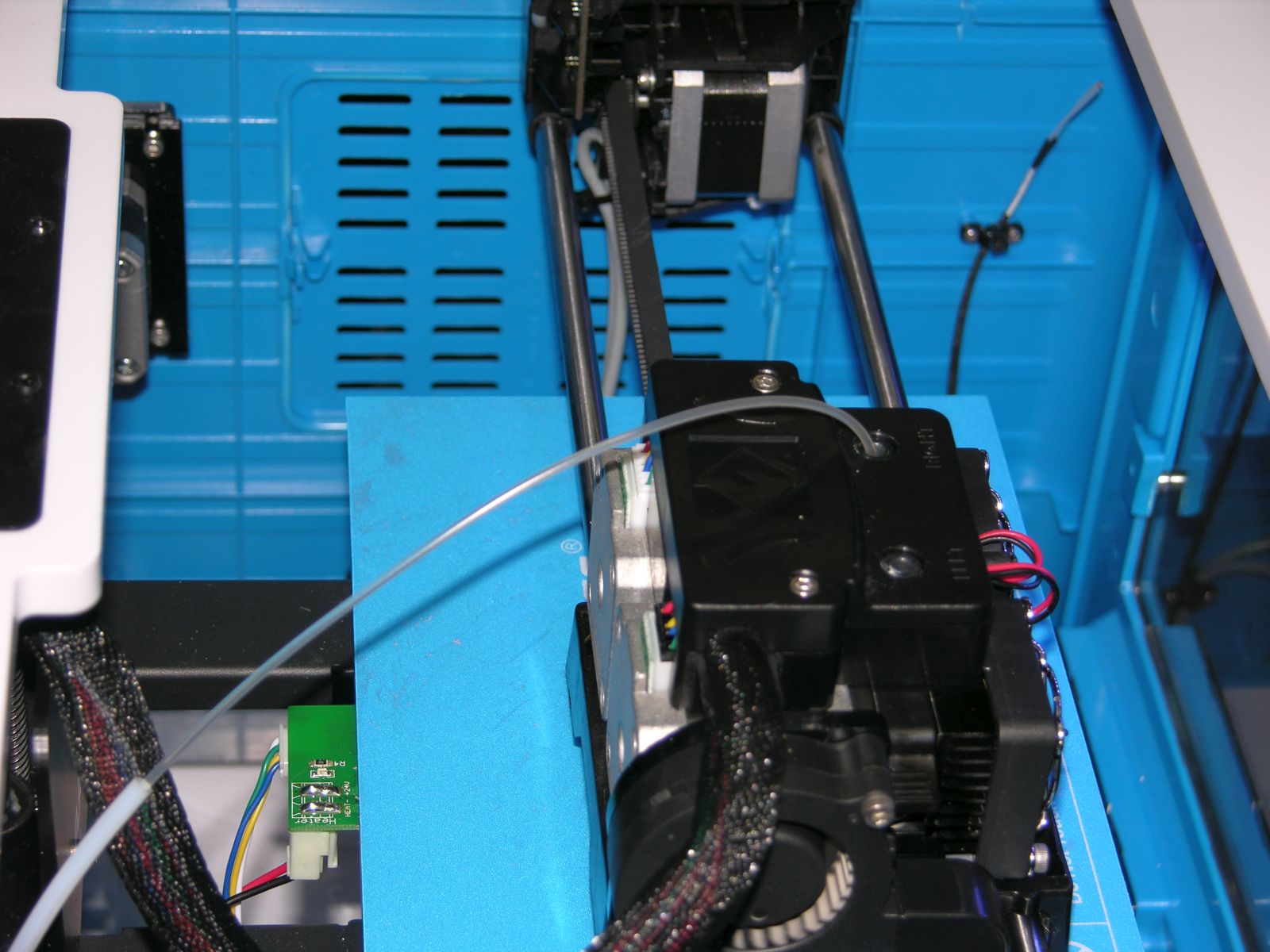

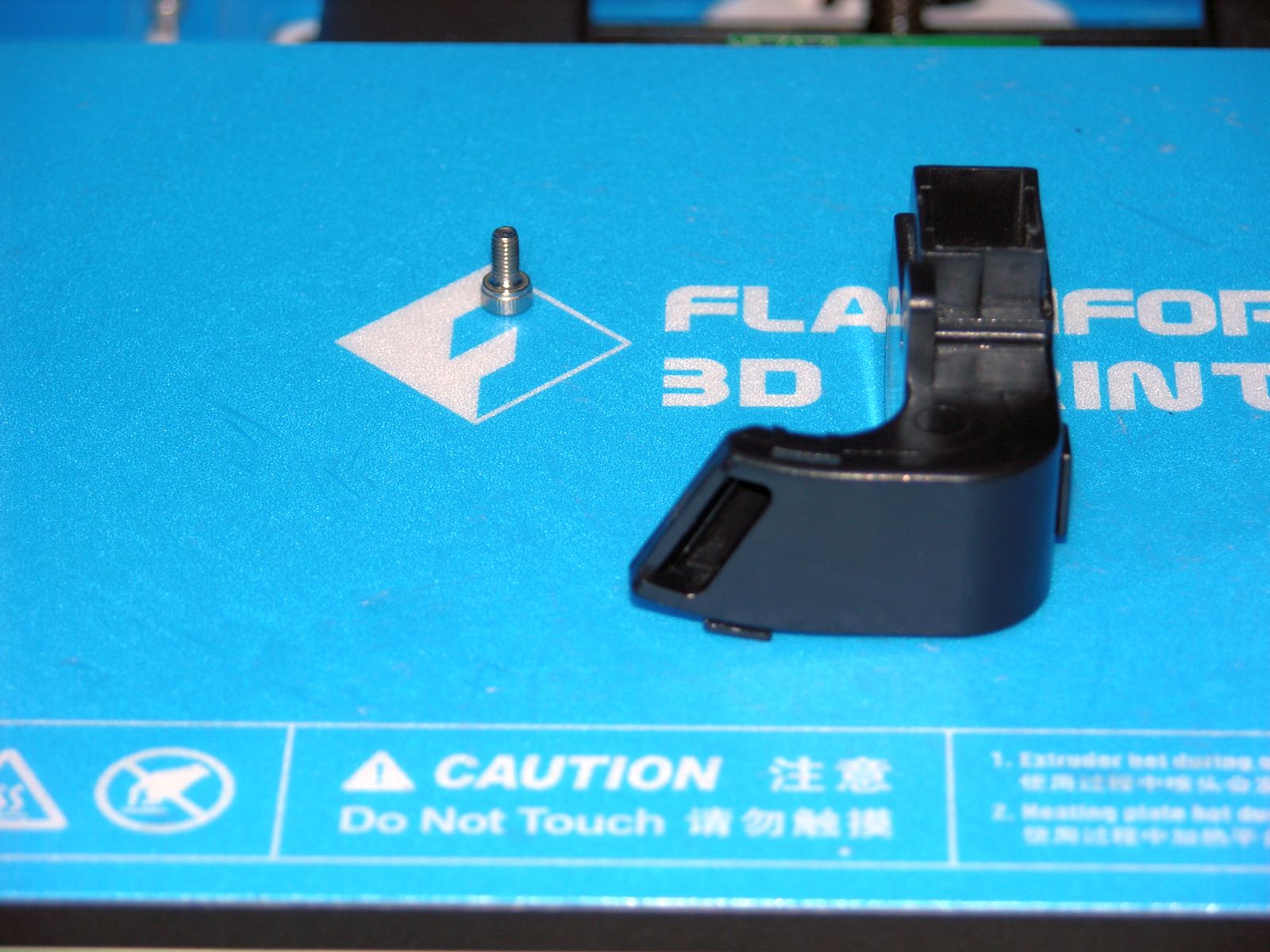

冷却用ダクトを外す

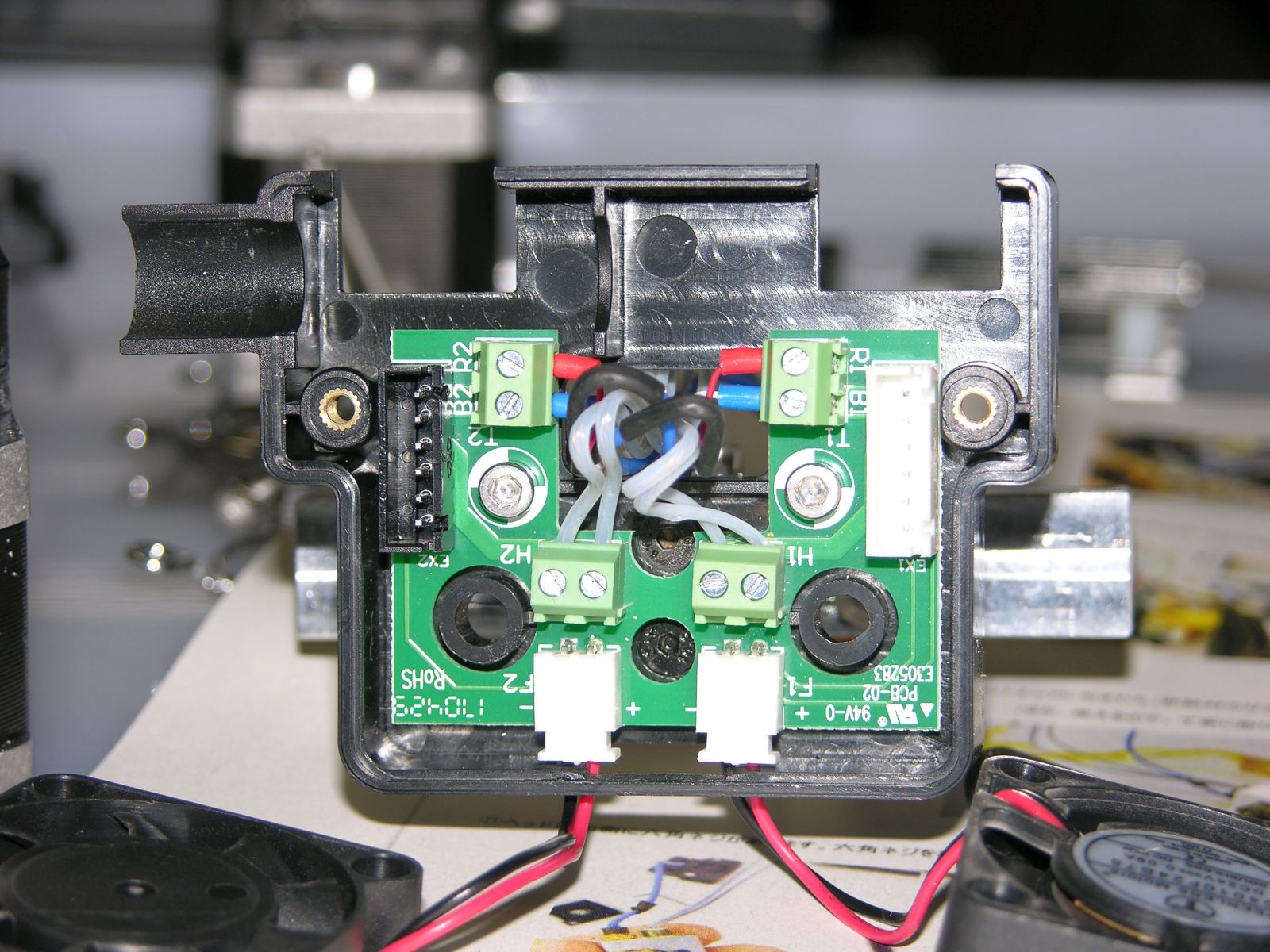

ヘッドのトップのケーブルを外す

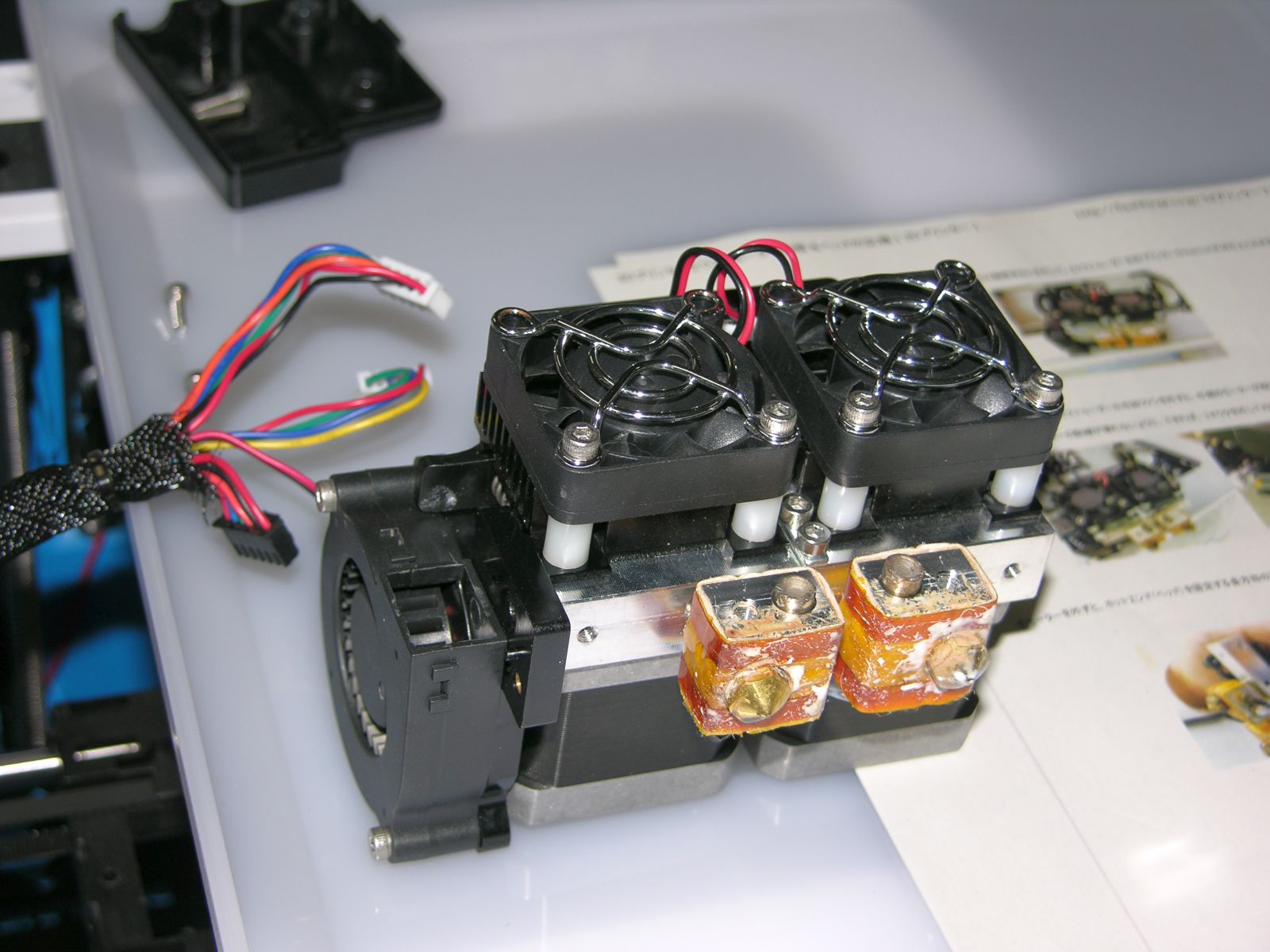

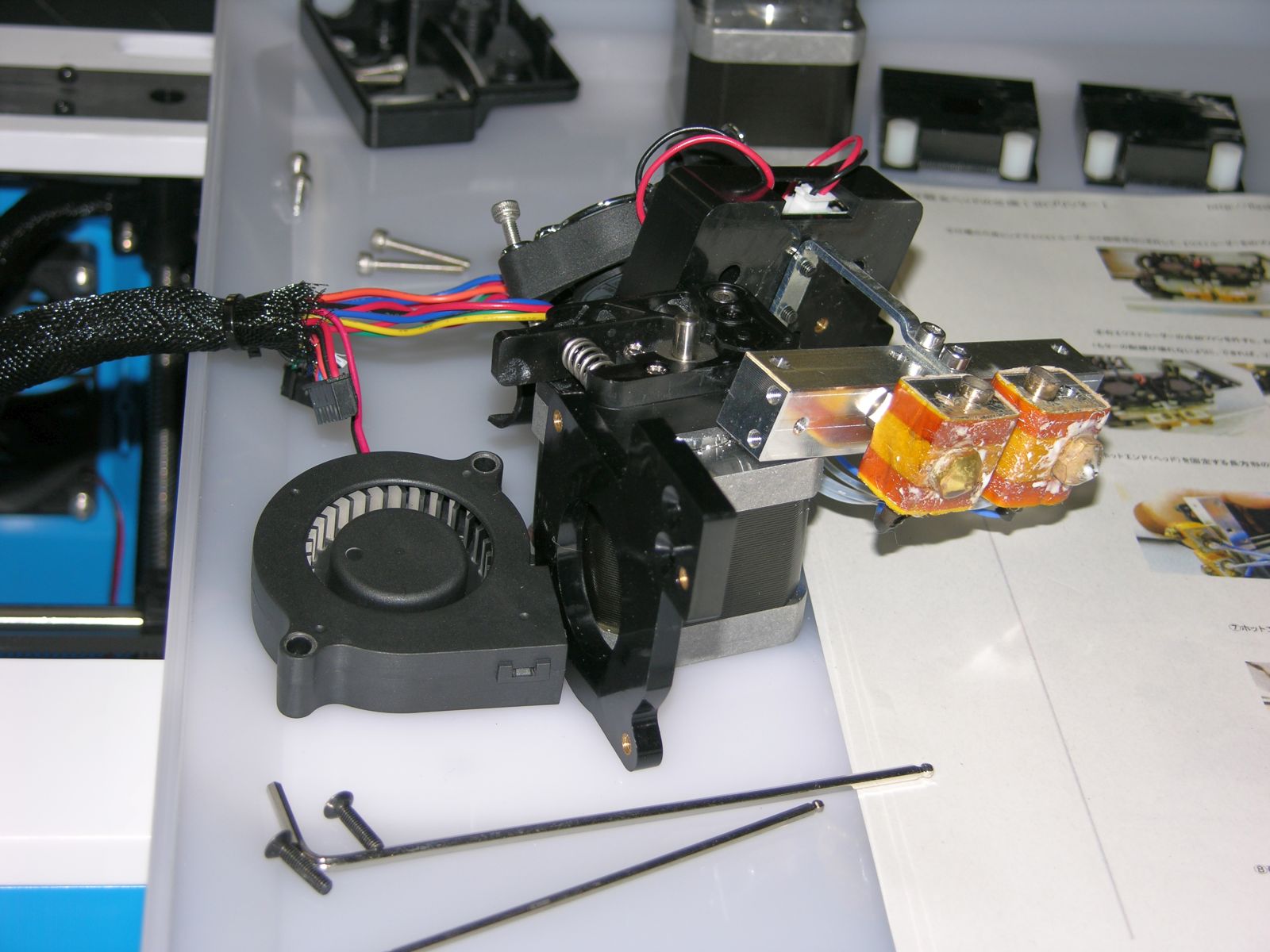

ヘッド全体を本体から外す

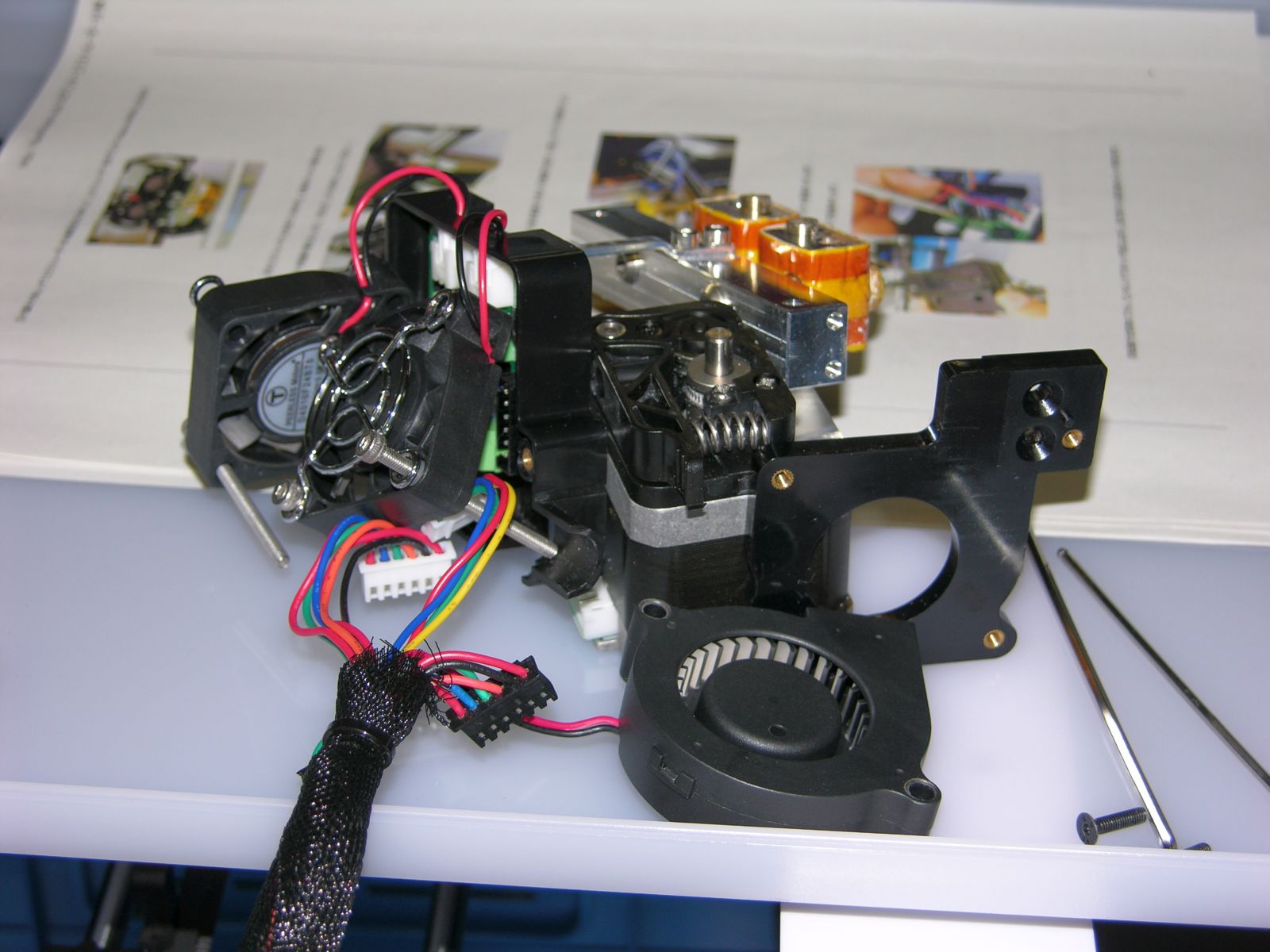

冷却用ファンを外す

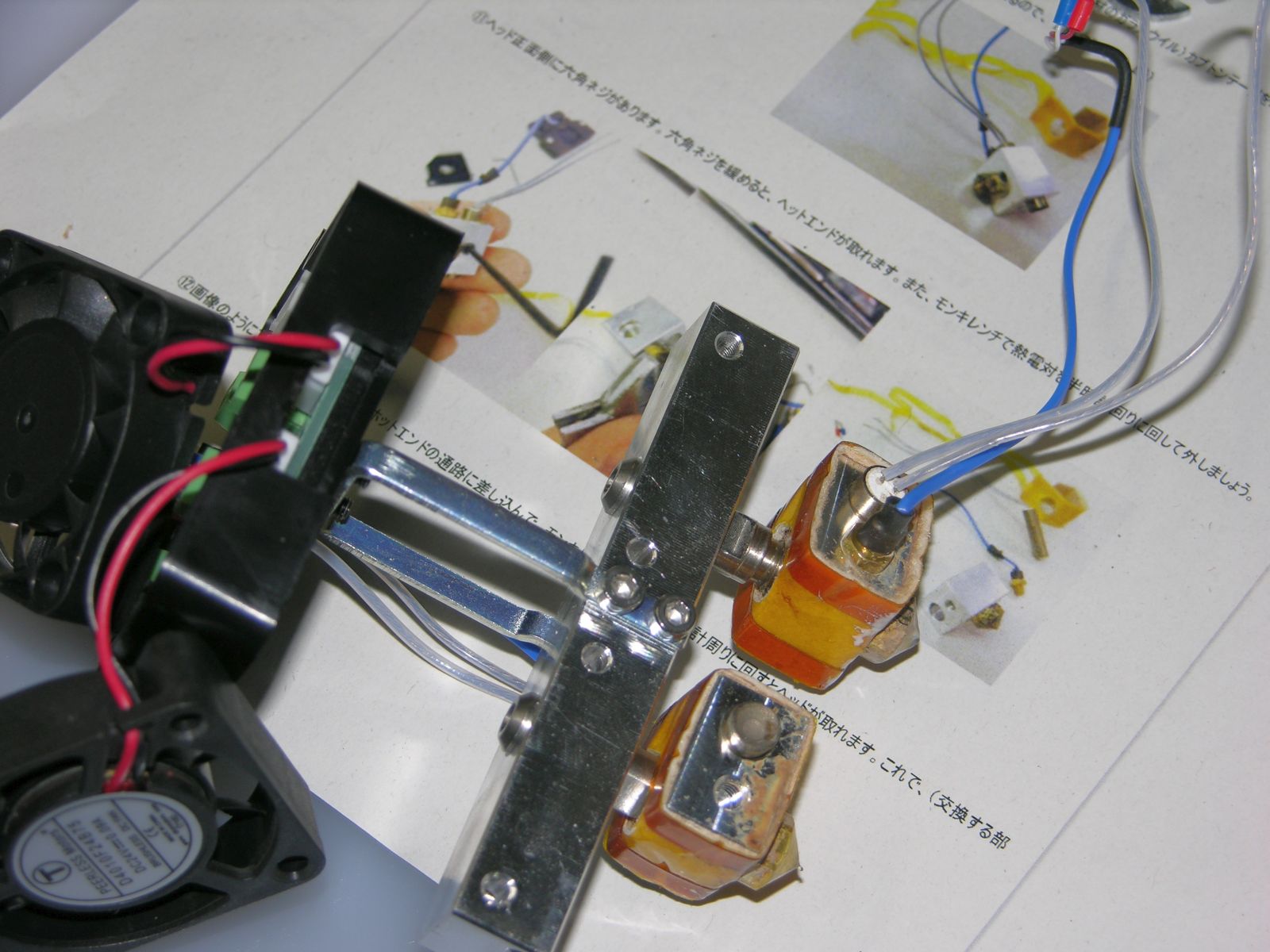

ヘッド加熱部分を外す

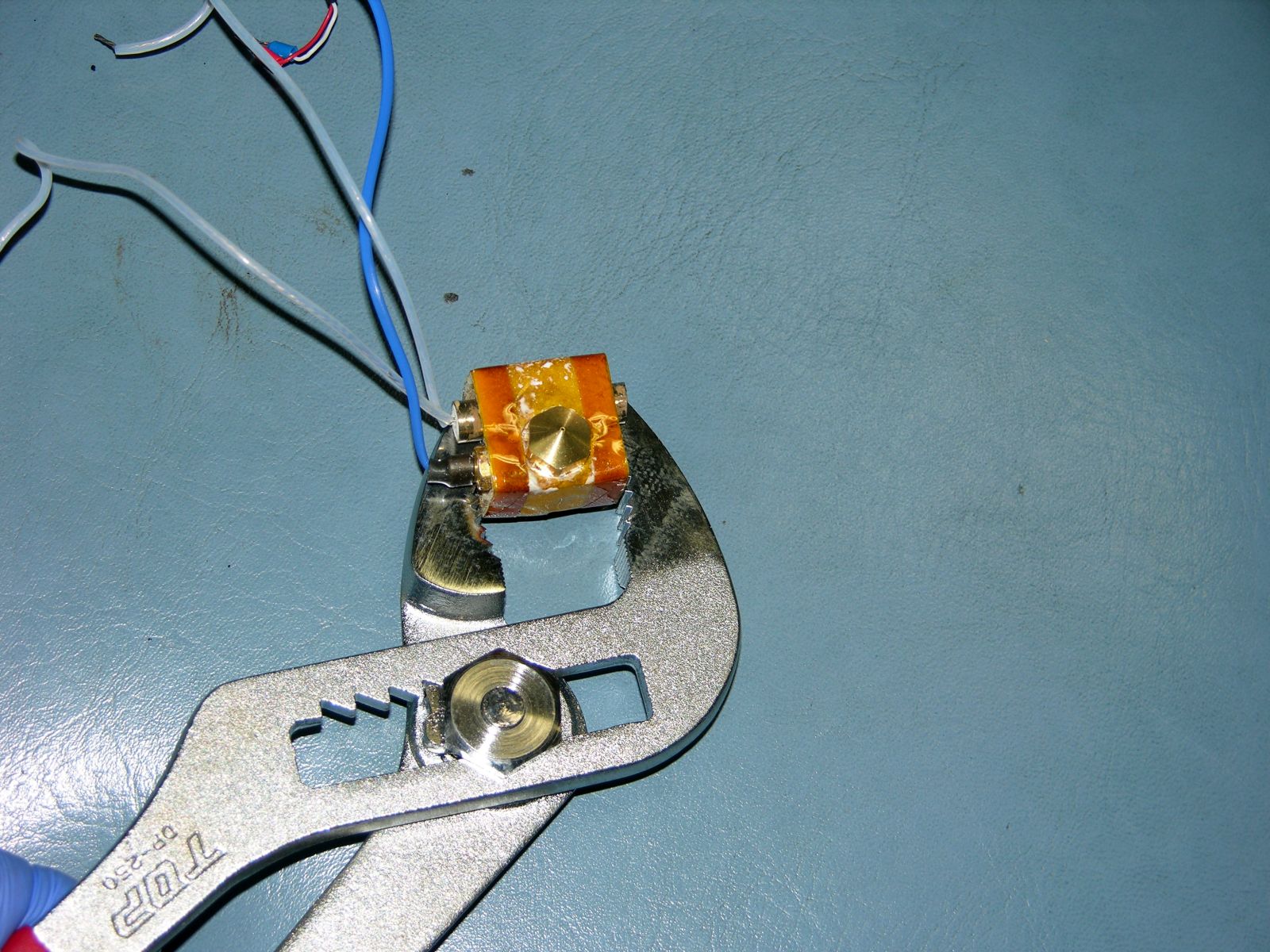

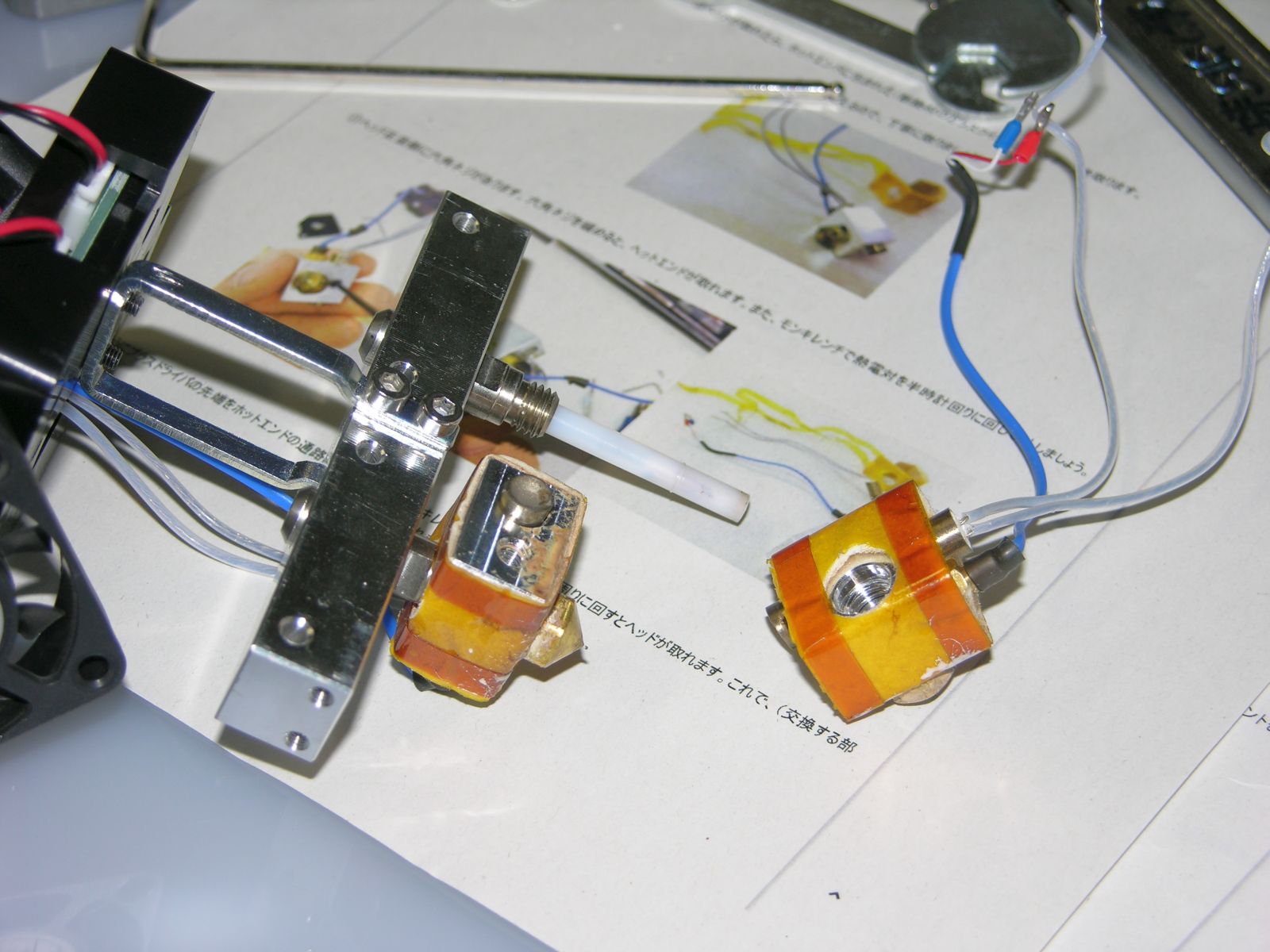

ヘッドを交換する
