トーンコントロール回路

アンプなどについている、Treble/Bassのことです。前から使っているTRIO TW-31の周波数特性がなにかおかしいので、 プリアンプ段についているCR型トーンコントロール回路を見直したところ、回路が逆に実装されているようでしたので、 10k、50k、100kの可変抵抗を用いた回路を再実装しました。

減衰が大きいので、両側にバッファアンプが必要となります。ボリュームはAカーブで、中央で15%程度を基準として作ってあります。 基本的には、C/Rの上下比がボリュームの抵抗比と同じになるようにすればよいはずですが、系列の中の数値を選ぶ必要があるので、 少々難しいかもしれません。

LTSpiceのファイルもありますので、簡単にシミュレーションできます。

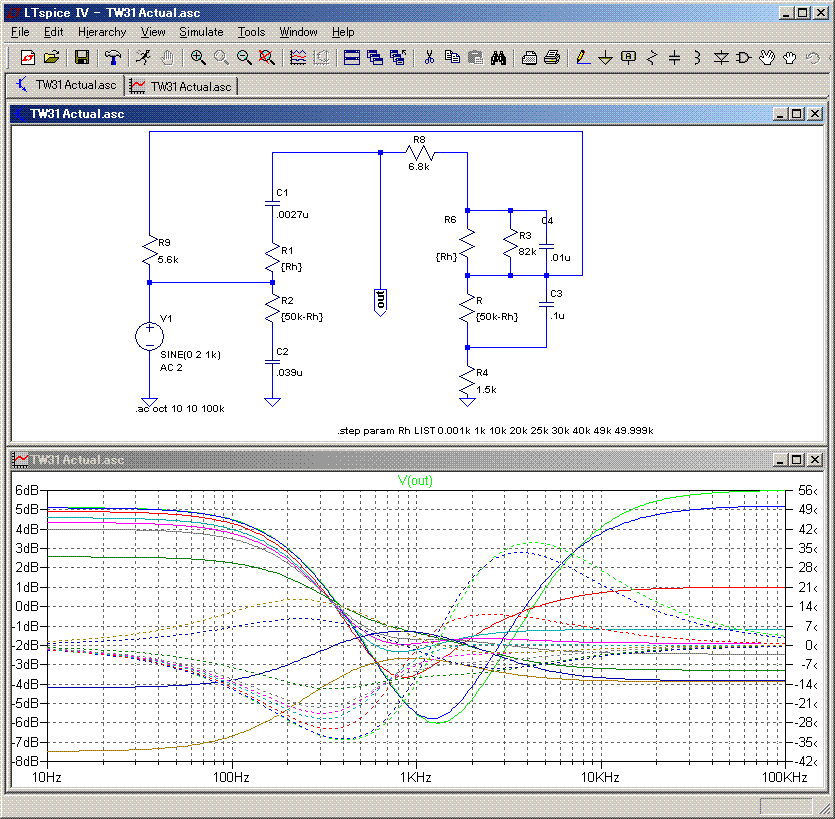

TRIO TW-31オリジナル回路

Screen Shot

LTSpice

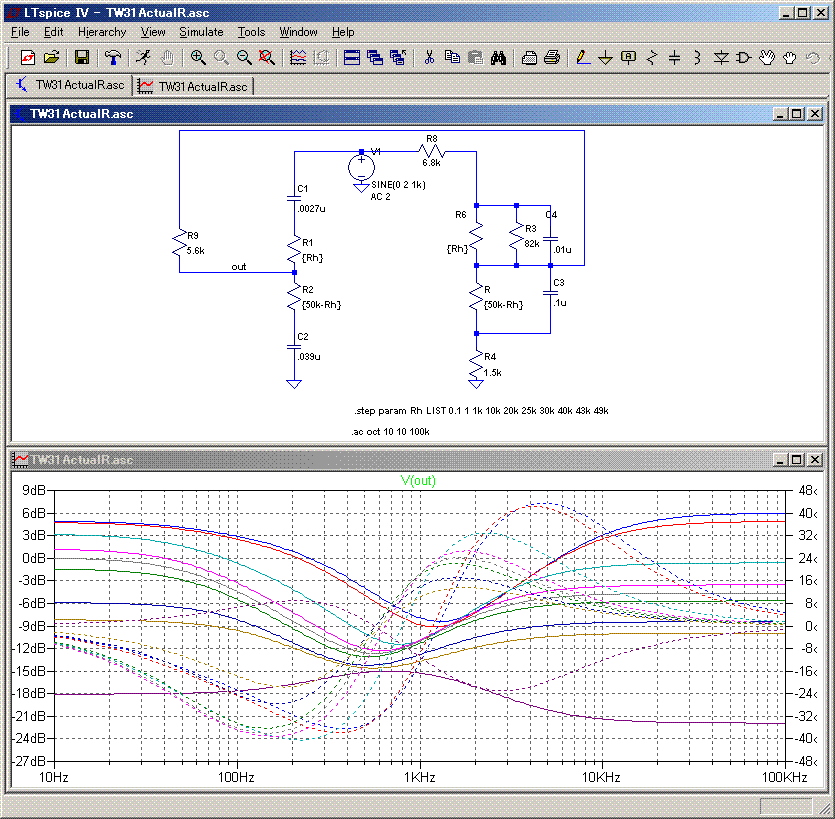

TRIO TW-31オリジナル回路を反転させたもの

Screen Shot

LTSpice

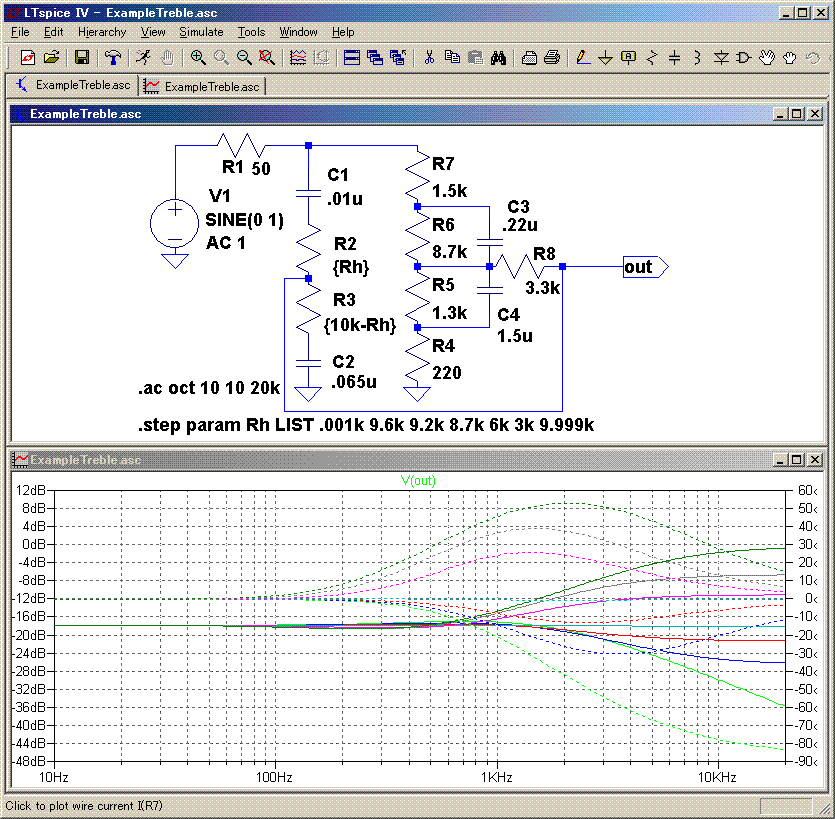

10k使用

Screen Shot

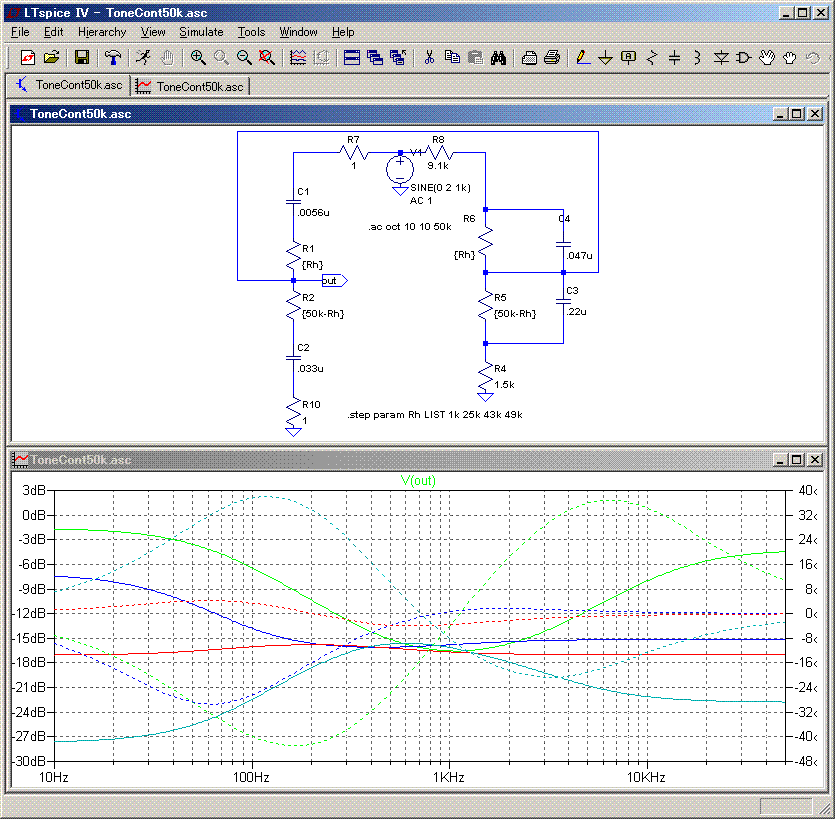

50k (1)

Screen Shot

LTSpice

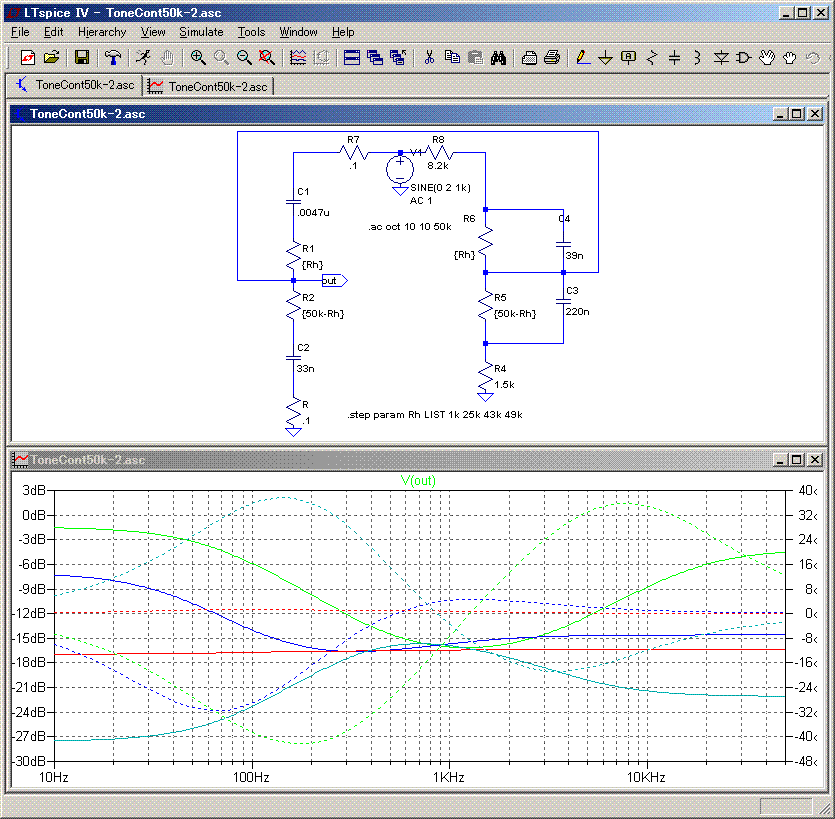

50k (2)

Screen Shot

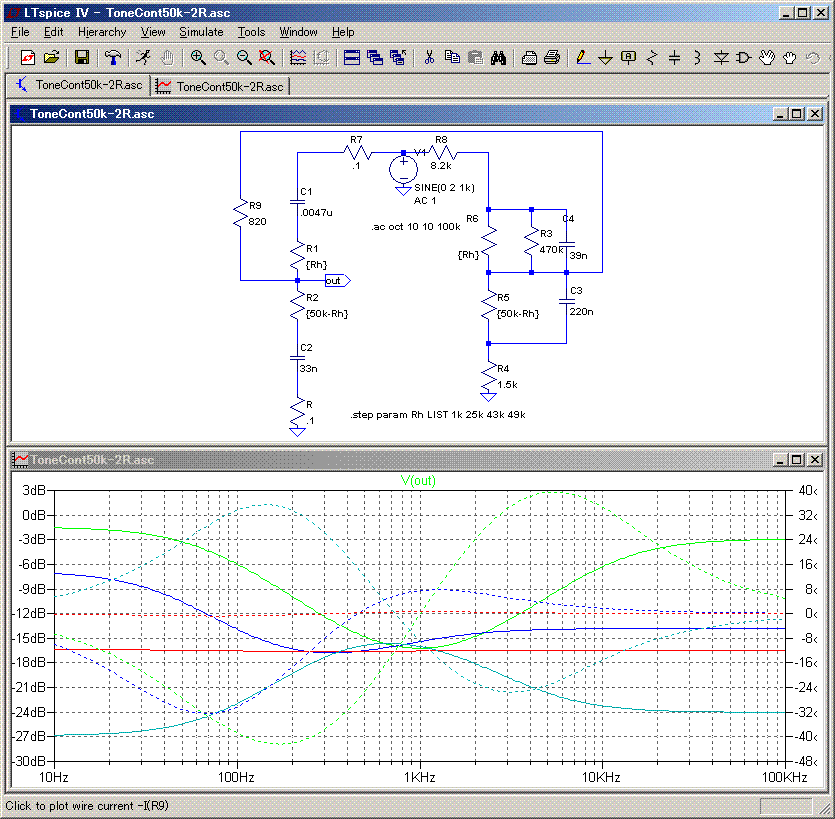

50k (3)

TRIO TW-31に再実装した回路です。一部回路面の変更が必要となりました。

Screen Shot

LTSpice

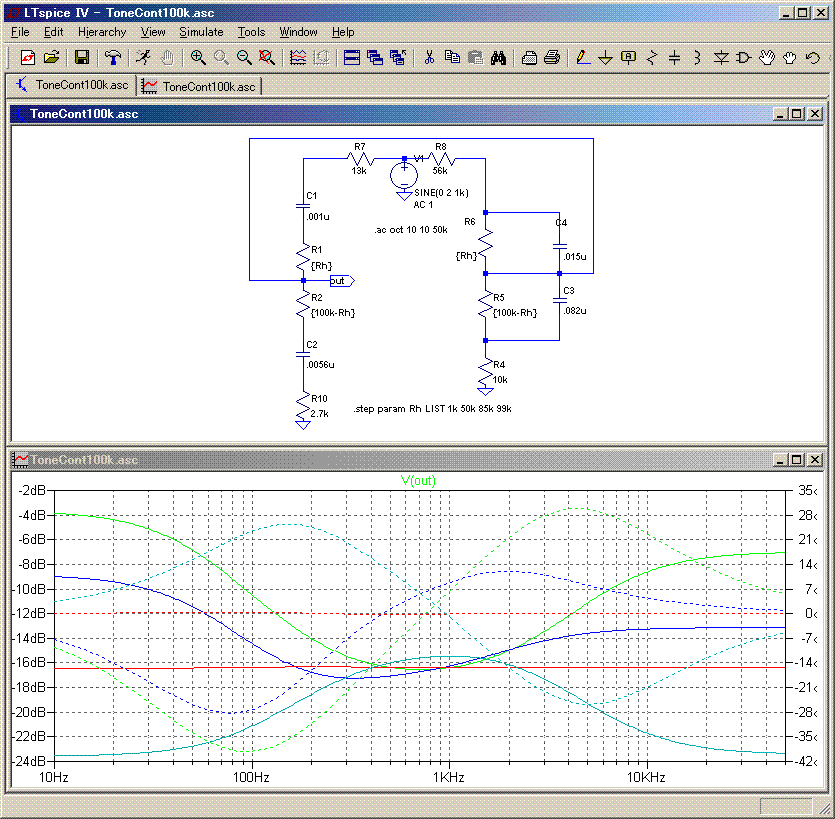

100k

Screen Shot

LTSpice
